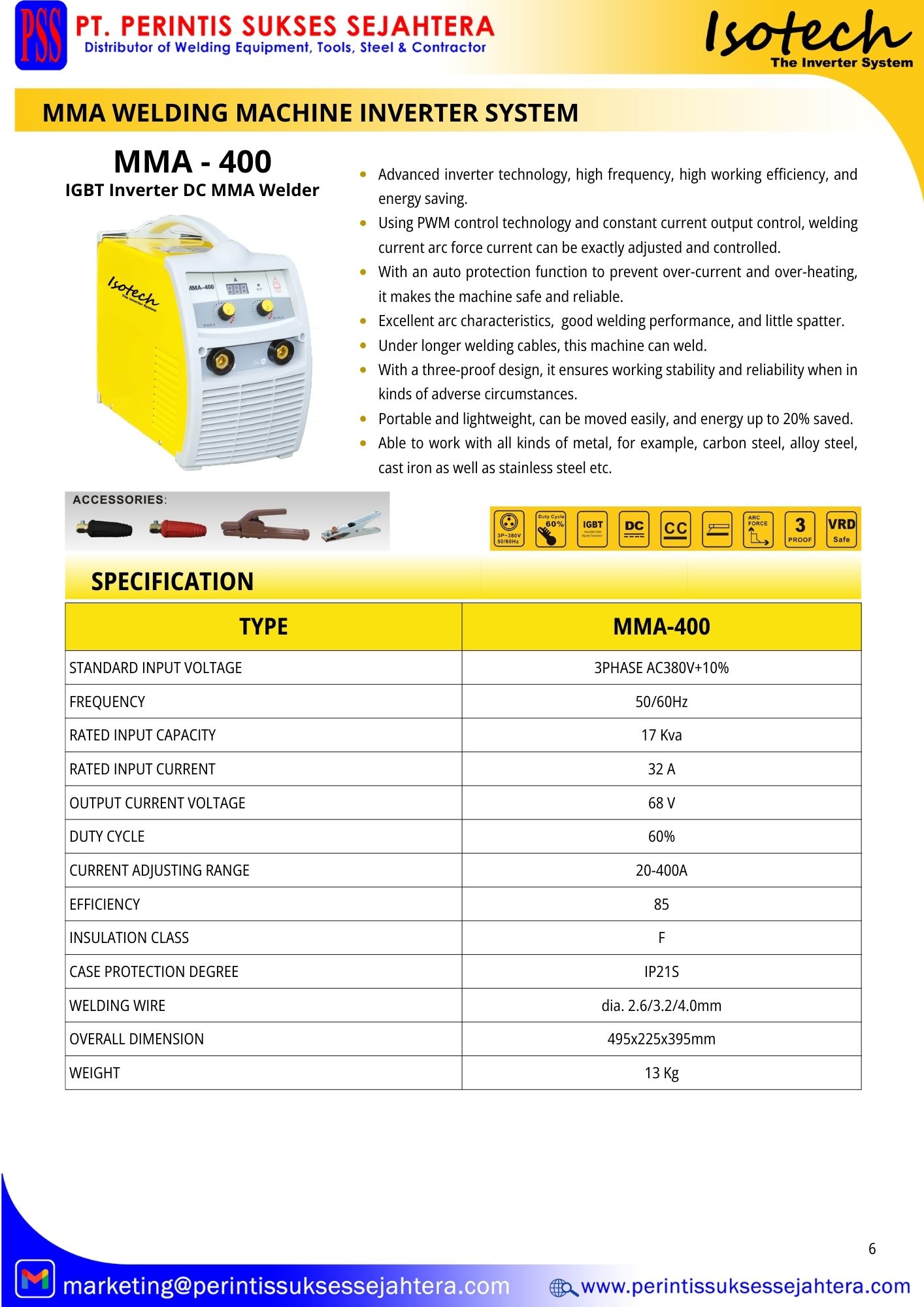

MMA-400

Advanced inverter technology, high frequency, high working efficiency and energy saving. Using PWM control technology and constant current output control, welding current arc force current can be exactly adjusted and controlled. With an auto protection function to prevent over-current and over-heating, it makes the machine safe and reliable. Excellent arc characteristics, good welding performance, and little spatter. Under longer welding cables, this machine can weld. With a three-proof design, it ensures working stability and reliable when in kinds of adverse circumstances. Portable and lightweight, it can be moved easily and energy saving up to 20%. Able to work all kinds of metal, for example, carbon steel, alloy steel, cast iron as well as stainless steel, etc.

TYPEMMA-400
STANDARD INPUT VOLTAGE3PHASE AC380V+10%
FREQUENCY50/60Hz
RATED INPUT CAPACITY17 Kva
RATED INPUT CURRENT32 A
OUTPUT CURRENT VOLTAGE68 V
DUTY CYCLE60%
CURRENT ADJUSTING RANGE20-400A
EFFICIENCY85
INSULATION CLASSF
CASE PROTECTION DEGREEIP21S
WELDING WIREdia. 2.6/3.2/4.0mm
OVERALL DIMENSION495x225x395mm
WEIGHT13 Kg
